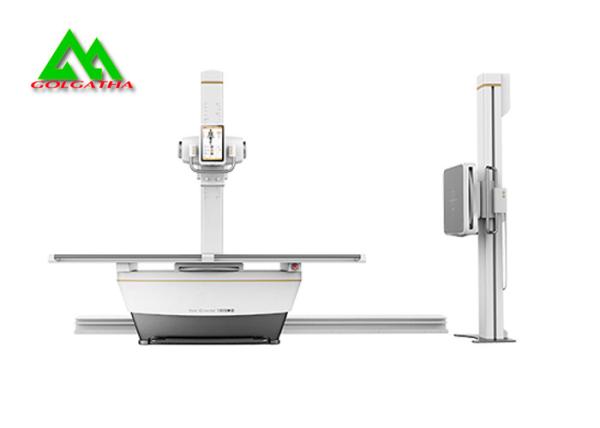

Flat Panel Digital X-ray Machine
Product Description
I. Application:
This machine is applied to take radiography on every part of human
body, such as head, limbs, chest, limbus and abdomen and etc.
II. Feature
1. Anti-electroshock, radiation-proof, and full wave commutation.
2. Exact dose with computer controlling system, ensure high quality
3. Structure designed based on anthropotomy, with beautiful
appearance, and easy to operate.
4. With electromagnetism controlling system, fluctuation bed board
and manual operation pillar to ensure a fast and reliable location.
5. Convenient to take stretcher photograph.
III. Specifications
| Item | content |
| Output power | 40 kW |
| Main inverter frequency | 50 Hz |
X-ray tube (Toshiba) | Rotary anode, dual-focus |
| Large/ Small focus | 2.0mm/ 1.0mm |
| Power of large/ small focus | 50kW/ 30kW. |
| Tube thermal capacity | 1100kJ |
| Tube current | 32-500mA Step adjustment |
| Tube voltage | 44kV-125kV 41 Steps adjustment |
| Time | 0.02-4.0 s |
Table radiography grids (Imported) | Grid density: 103L/inch Grid ratio: 10:1; Focusing Distance: 100cm Stationary type: 15"×18" |
| Mechanical Movement | SID: | 500-1280mm |
| X-ray tube Longitudinal movement | 1300mm |
| X-ray tube Rotation range around transverse axis | ±90° |
| X-ray tube Rotation range around pillar | 4* 90 |
| Table | Table size | 2000×760mm |
| Table height | ≤700mm |
| Table transverse movement | ≥220mm |
| Table longitudinal movement | ≥900mm |
| Cassette Movement Distance | ≥500mm |
| Power supply | 380V three phase 50Hz 40kVA |
IV. Standard Configurationt
| No. | Item | Quantity |
| 1 | Control console | 1 |
| 2 | High voltage X-ray generator | 1 |
| 3 | X-ray tube | 1 |
| 4 | High voltage cable | 1 |
| 5 | Radiography table (with pillar) | 1 |
| 6 | Manual limiter | 1 |
| 7 | PLD 5000B accessory | 1 |
Option: Bucky stand
(Grid density: 103L/inch, Grid ratio: 10:1, Focusing Distance:
180cm,
Stationary type: 15"×18", film size: 14"×17")
