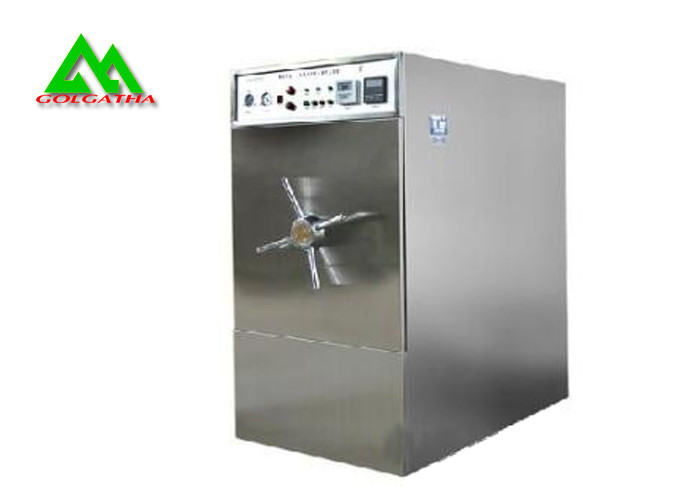

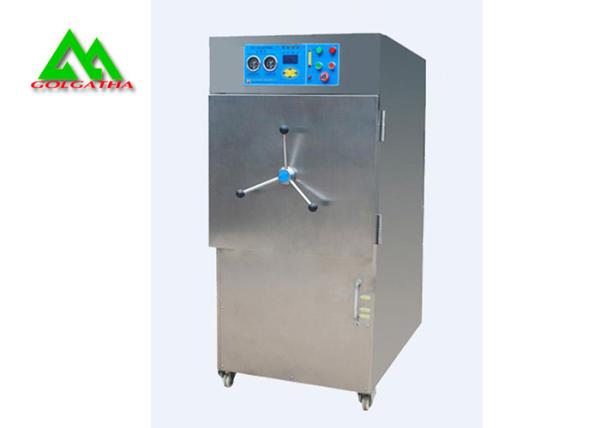

Micro-Computer Horizontal Circular Sterilizer Steam Autoclave
Product Description
Characteristics
1. Sterilizing course automatic sterilization controlled by
computer, easy to operate.
2. With drying function, suitable dressing drying.
3. With over-temperature, over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure
in the chamber is reduced to 0.027MPa. It can't be start on if the
doesn't closed well.
5. The safety value will be open automatically when the inner
pressure over 0.24MPa, and the steam be exhausting to the water
tank.
6. The power will be cut-off automatically, cut-off the water and
alarm when the machine lacking water.
7. The chamber of the sterilizer is made of stainless steel.
8. With printer.
9.150L, 200L and 280L sterilization chamber volume.
| Technical data | GGT-150YDB | GGT -200YDB | GGT-280YDB |
|
| Sterilizing chamber volume | 150L
φ440×1000mm | 200L
φ515×1000mm | 280L
φ600×1000mm |
| working pressure | 0.22 MPa |
| working temperature | 134 degree |
| Adjustment of temperature | 40 - 134 degree |
| Time of sterilization | 0-99 min |
| Time of drying | 0-99 min |
| Heat average | ≤± 2 degree |
| Power | 9KW/380V 50Hz | 9KW/380V 50Hz | 12KW/380V 50Hz |
| Dimension | 1400×650×1600 | 1400×750×1700 | 1520×910×1900 |
| Transport dimension | 1560×820×1820 | 1560×910×1880 | 1680×1080×2100 |
| G.W/N.W | 430/340 KG | 436/350 KG | 570/462 KG |
