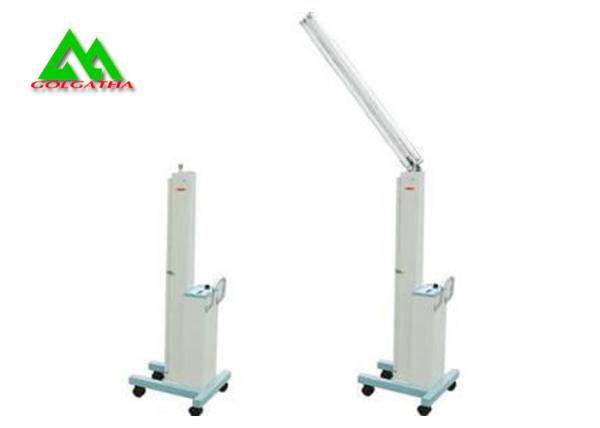

Medical Germicidal Ultraviolet Sterilizer
Product Description
1. Functions
Ultraviolet sterilizes truck is mainly used in the medical and
hygienic units as well as the industrial section of food and
medicines for the air sterilization.
2. Main technical data
Wavelength of ultraviolet rays: 253.7A
Voltage: 220V 50Hz
Power: 2*30W
The adjusting angle of the lamp arm: 0 deg -180 deg;
3. Method of usage
This product can be used alone with double light tubes, and the
angle of the lamp
Arm can also be adjusted. Please close the safety door when it is
not in use in
Order to avoid the damage of the light tube and also maintenance of
the cleaning
Of the tubes.
The timer can control the sterilizing time within 1440 minutes. And
the circuit
Will be automatically closed when time is up.
Every part of the truck should be tested beforehand in order to
check whether it
Has the problem of leakage of electricity. And three-pins plug must
have a land
Wire in order to avoid the electric shock.
Please cut the electric circuit after the truck is used and then
withdraw the
Plug from the socket.
4. Products Description:
This product is made of stainless steel, carbon steel, two
materials, for the two structures, but also can be used
independently adjust the angle of 0-180 degrees lamp arm. Can be
put down when not in use, close the protective door, so as not to
damage the tubes, while maintaining the tube clean. Direct exposure
to the product type disinfection methods for indoor air and surface
sterilization, easy to move, light arm angle can be adjusted, the
timer can be adjusted from 0 to 1440 min sterilization time. Mainly
used for hospital outpatient, clinic, nursery, catering services,
food manufacturing or processing units, animal husbandry, poultry
farming, as air and surface sterilization and disinfection etc.
5. Main data:
1. Voltage: 220V± 10% 50Hz
2. Power: 30W× 2
3. UV length: 253.7nm
4. UV illumination: ≥ 214uW/cm2
5. Adjustable tube angle: 0 degree-180 degree
6. Caution:
1. The voltage range should be less than 5%, or will affect the
rated life.
2. Two structures, the arm of lamp can be adjustable according to
the angle.
3. Ensure the surface clean of UV lamp, or will affect the
performance.
4. In case of any electricity risk.
5. After using turn off the plug of power.
6. Keep in the dry and clean room.
7. UV illumination less than 70% or more than 2000 hours working
should change the lamp.
