Standard Parameter & Configuration:

ECG/ RESP/DEFIBRILLATOR

Optional Parameter:

Recorder

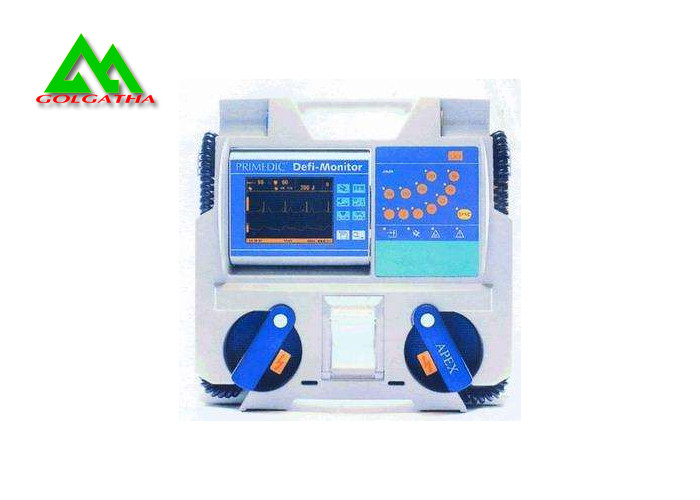

Main unit: Portable Dimensions: L320xW205xH410 Weight: 9.5kg

Technical specifications:

DEFIBRILLATOR:

(1) Defibrillator typeManual, Synchronized, Asynchronized,

(2) Out put waveformMonophasic technology

(3) Energy accuracy+1%

(4) Energy selection0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joule(nominal at a resistance of 50)

(5) Charging time Maximum 8 seconds to 360 Joules

(6) Standard Adult/Pediatric Paddles Reusable external adult paddl (pediatric paddles integrated)

Power requirements:

(a)AC Power supply110V, 60 Hz /220V, 50 Hz

(b) Vehicle Voltage DC 12V

Internal Battery Backup:
(1) Battery type Rechargeable lead-acid battery
(2) Charging time Time-Minimum of 4 hours for full charging
(3) Battery charging During AC Power Supply operation of the device.
(4) Charging /Low Battery Indication Red LED
(5) Battery Capacity 100% of the battery will provide 120 mins of monitoring; And 30 discharges at 360 joules.

Display:
- LED Dimensions7'diagonal: 155mm*88mm
- TypeHigh resolution true-color graphic LED
- Resolution480X234

Parameters:
ECG:
ECG lead: I, II, III, AVR, AVL, AVF, V1~V6, GND
S-T segment analysis: -2.0~2.0mv
Arrhythmia analysis: Yes
Protection: With stand 4000VAC/50Hz voltage in isolation and work against electrosurgical knife and defibrillation
Respiration
Measurement method: Thoracic impedance
