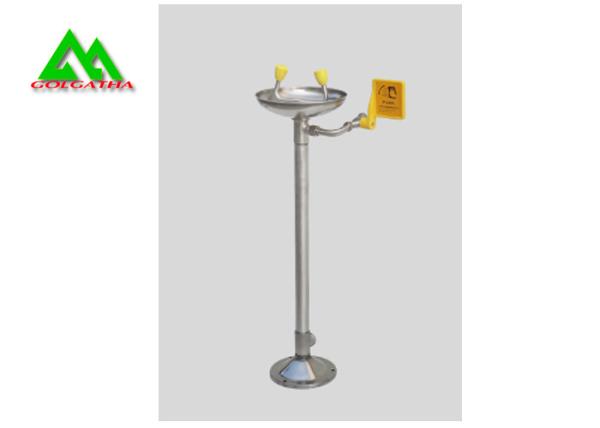

Vertical Pedal Antifreeze Stainless Steel Eye Washer
Product Description
1. Product name: Vertical pedal antifreeze stainless steel eye
washer
2. Brand: GOLGATHA
3. Product model: BTL61
4. Production standard: American ANSIZ358.1-2014
5. Function: eye wash
6. Nominal pressure: 1.0mpa
7. Work pressure: 0.2-0.4 Mpa
8. Eye flow rate: greater than 11.4 L/min
9. Inlet size: 1/2 height 850mm
10.Outlet size: 1-1/4 height 98mm
11. Weight: 7.5 KG
12. Net weight: 6.5 KG
13. Size: L * W * H = 750 * 300 * 250mm
14. Product size: L * W * H = 360 * 330 * 1050mm
15. Use medium: it meets the standard of health standard
16. Main material: special SS304 stainless steel, which conforms to
national standard, has good corrosion resistance of acid, alkali,
salt and oil
17. Eye switch way: hands and feet, using only a light push push
valve or on waste pedal, eye switch is open, clean water is
automatically from eye nozzle jet, nozzle peripherals dust cover,
when used with flow automatically.
After the shut-eye switch is opened, the non-man will operate and
will not shut automatically. Please turn off the switch and reset
the dust cover when used
18. Low freeze protection: this product is equipped with
high-performance emptying anti-freezing device, suitable for more
than 5 ℃ below zero environment, use washing eyes closed after the
switch, the system automatically drain water accumulation in the
pipeline.
Such as 5 ℃ below zero the use should pay attention to the
following pipe insulation anti-freezing measures.
19. Eye nozzle: eye nozzle built-in multi-layer filter, effectively
filter the impurities in water, the water flow into a foamy water,
effectively prevent the impurities in water, or to the injured eye
due to water flow ultra secondary damage nerve and the injured
area.
The filter screen is easy to remove, easy to clean and easy to
maintain.
20. When this product is suitable for the environmental temperature
is higher than 0 ℃, should pay attention to below 0 degrees and
environment freeze protection of pipes
