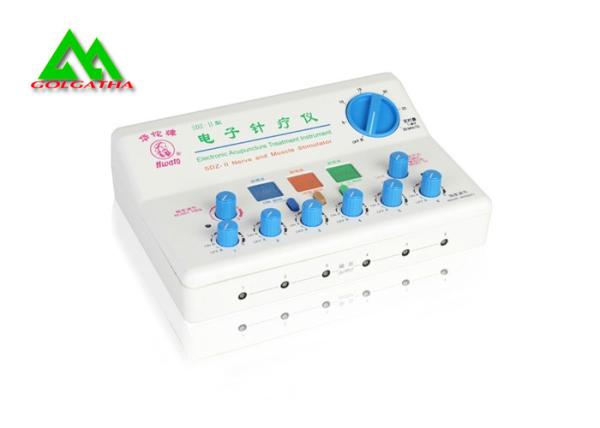

Physical Therapy Equipment Electro-acupuncture Device Electric
Acupuncture Apparatus
Characteristics
The instrument is provided with automatic protection against
short-circuit.
The instrument gives sound and light hint notification at the end
of the therapy time and the output is stopped automatically.
An independent indicator is provided for every way of output and a
light is used to indicate the output intensity.
The therapy involves use of filiform needle electrode or use of
skin electrode.
Shift in wave grades during the therapy through “skin electrode”
shows more curative effect.
The automatic machine circuit with short circuit protection
devices; the timing of treatment is completed audible prompts and
automatically stop output; each output independently indication
output strong and weak display by lighting.
The main technical indicators:
1. Output waveform: asymmetric pulse
2. Pulse width: 0.5ms, the error of + 30%
3. Continuous Wave: 0.8 ~ 100Hz, in 11 files
4. Intermittent Cycle: 6s
5. sparse wave: 4Hz
6. dense wave: 20Hz
7. density cycle: 6s
8. Number of outputs: 4 or strengthen output outputs 2
9. Output voltage: skin electrodes (load 500Ω) 0 ~ 38V, 0 ~ 44V
enhancement to
Needle electrode (load 250Ω) 0 ~ 18V, 0 ~ 20V enhancement to
10. Treatment time: 10,15,20,25,30,40,50,60min eight stalls
11. Power: ac220V, 50Hz; Input Power: ≤8VA
dc6V, input power: ≤3VA
12. Work system: continuous 4h
13. Use the environment: temperature of 5 ℃ ~ 40 ℃, relative
humidity ≤80%
14. Dimensions: 260mm × 200mm × 90mm
15. Weight: 1.5kg
Configuration Checklist:
1. conductive silicon rubber electrodes: flange 40mm × 40mm 4 thin
slices shaped φ30mm 4 pic
Self-adhesive 40mm × 40mm 2 thin slices shaped φ40mm 4 pic
Self-adhesive φ30mm 2 pic
2. With the pin output line 4
3. The belt clip output line 4
4. Power Line 1
5. conductive paste a tank
6. The elastic band 6
