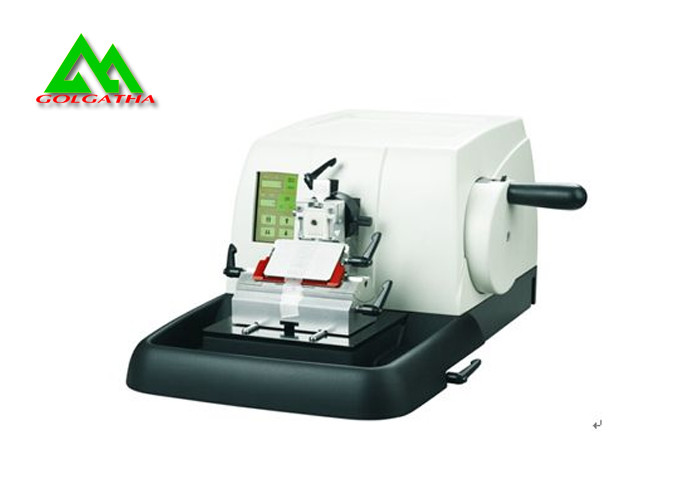

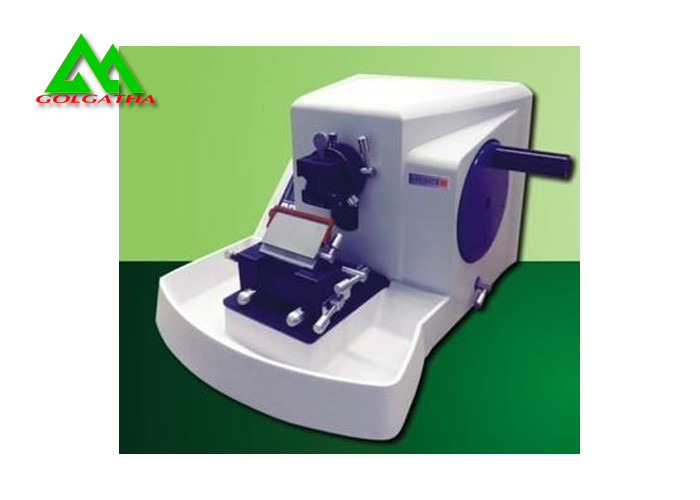

Semi-automatic Microtome Computer Slicer

Description:

GGT-17012 Semi-automatic microtome is new model after old microtome, This model is developed based on semi-automatic microtome, it combine advanced and patented technology, and it's very good choice for histopathology research.

This model adopt streamline design, advanced function, stable performance, user-friendly. Specimen feed drive is controlled by intelligent control system. Manual and automated sectioning mode. Speed of sectioning can be adjusted; emergency Stop(E-stop).Precise electrical mechanical design, Ergonomic concept.

Features:

l Advanced driving systems, functions of section, trimming, fast forward, backward etc

l LCD screen shows section and trimming thickness range, numbers of section and trimming

l Section and trimming mode can be finished by controlling systems

l Hand wheel can be locked at any position to assure user's safety

l Large waste tray, easy to unload

l Universal cassette clamp and standard specimen clamp; emergency stop systems

Technical Specifications:

l Section thickness range: 1 ~ 100μm

1 ~ 10μm increment 1μm

10 ~ 20μm increment 2μm

20 ~ 100μm increment 5μm

l Trimming thickness range:1 ~ 100μm

l Minimum setting value: 1μm

l Object feed: 28mm

l Vertical stroke: 60mm

l Specimen retraction range: 20μm

l Specimen clamp rotated at an angle of 360 degrees.

l Maximum specimen size: 50 x 50mm

l Precision error: ±5%

l Working Voltage: AC220V 50Hz AC110V 60Hz

l Power draw: 50VA

l Dimension:580x330x310mm

l Net weight:28kg

Our Advantage :

1: For all your inquires about us or our products , we will reply you in detail within 24 hours.
2: We own professional team have professional attitude to recommend products and services.
3: One year free warranty , after it is still providing after-sales service .
4: We offer OEM services , Can print your own logo on the products .
5: We have very experienced engineers , can help you better use our products .

GOLGATHA company is a professional for medical equipment manufacturing、selling and after-sales service setting in the firm.General headquarter in Guangzhou,China.Through tireless efforts of all company colleagues, Continuing to established of HaiTong Medical Equipment Factory、EKU（HongKong）Import & Export Trading Limited，especially building up a marketing center (Guangzhou GOLGATHA Import & Export Co.,LTD.)in TianXiuBuilding,YueXiu District,Guangzhou,China.It is one of largest company for medical & laboratory equipment business.
